EBS-250 Handjet® Portable Inkjet
Professional, durable inkjet printing... anywhere
Print on virtually anything
Metal, plastic, timber, glass, textiles, foam...
Wide choice of inks
Extensive range of inks including specialist inks for timber and food-grade inks

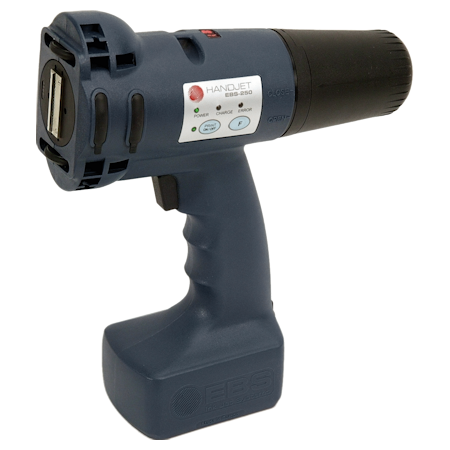

EBS-250 Handjet®
The EBS-250 Handjet® offers a professional and reliable alternative to traditional marking methods such as stencil printing, paint pens and marker pens. Text from 9 to 27mm high, simple logos and symbols can be printed onto porous and non-porous surfaces. Real time data including date, time, offset date and sequential numbers can be automatically printed.

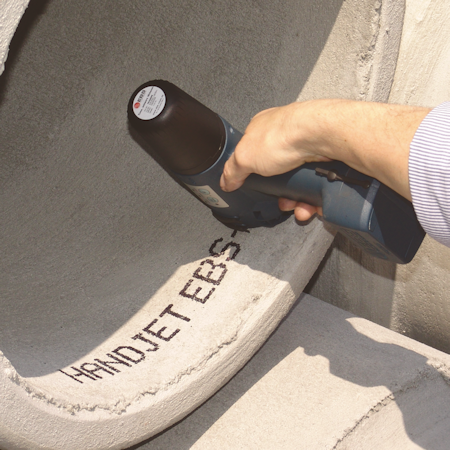

Based around an industrial inkjet print engine, the EBS-250 Handjet® is idaelly suited for printing in harsh industrial environments including concrete, stone, timber and construction. Durable, fast-drying inks can be used on products stored outdoors without the risk of fading through UV and weather exposure. A comprehensive range of ink types and colours is available including food-grade inks.
A wide range of accessories is available including barcode readers to scan-in print data, printing guides for printing onto small and awkward-shaped products and protection kits for harsh environments.
Specification
| Print height: | Up to 27mm |
| Text printing: | 9 to 27mm including True Type fonts. One or two lines of text may be printed simultaneously |
| Variable data: | Date, time, offset date, offset time, sequential numbers |
| Graphics printing: | Monochrohme up to 27mm high. BMP file format up to 16 pixels high. |
| Message editing: | PC-based editor software via Bluetooth connection to printer. Optional barcode reader input for variable data entry. |
| Memory: | 10, 30 or 60 print messages |
| Fast dry inks: | Black, white, blue, red and yellow. |
| Specialist inks: | Red for timber marking, food grade (red, blue and brown), UV-fluorescing for security marking and auto ID. |
| Print method: | 16 solenoid-driven nozzles, speed synchronised via integrated roller |
| Dimensions: | 222 x 255 x 74mm |
| Weight: | 980g including ink cartridge, excluding accessories |
| Kit contents: | EBS-250 Handjet, charger, cleaner spray bottle, ink cartridge, PC-based editor software |
| Battery life: | 50 hours printing based on printing 1m of print per minute continually. |
| Operating temp: | +0.5 to +40 degrees C. Humidity up to 95% non-condensing |
| Storage temp: | -10 to +45 degrees C (+1 to +45 degrees C if using water-based ink) |
EBS-250 Handjet® Accessories
Barcode Reader
Scan-in data for printing

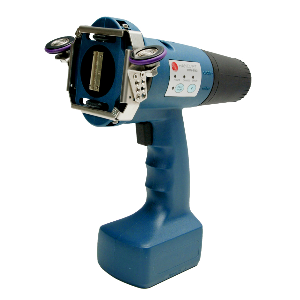

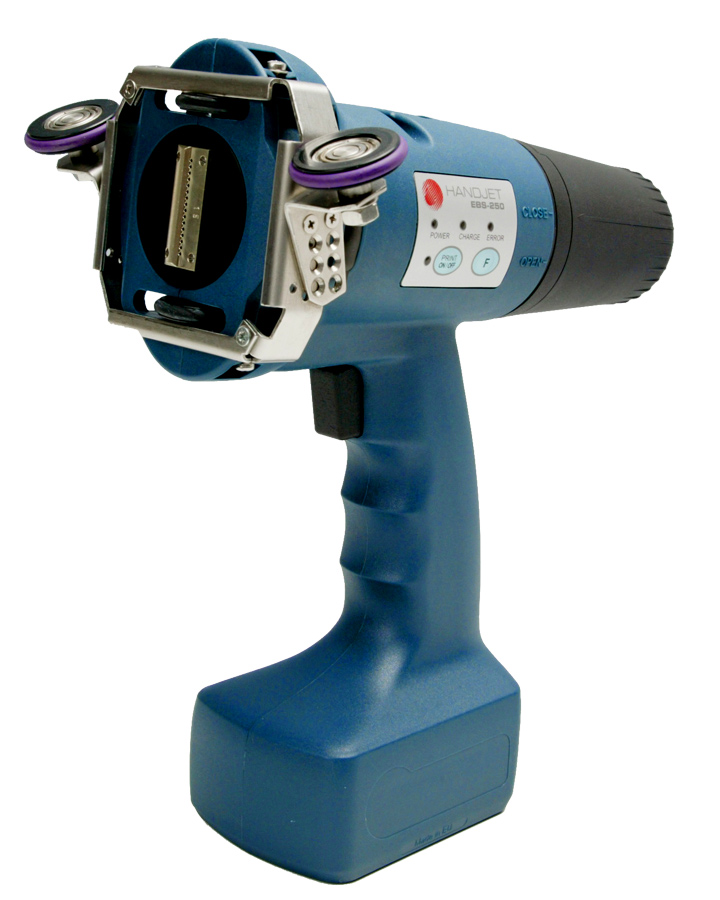

Pipe Adapter
Print along the length of pipes
Drum Adapter
Print around drums
Stainless Steel Nozzle
Protection from abrasive surfaces

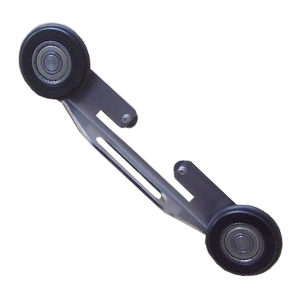

Printing Guides
For printing irregular products
Stabilisers
For long messages
EBS-250 Inks

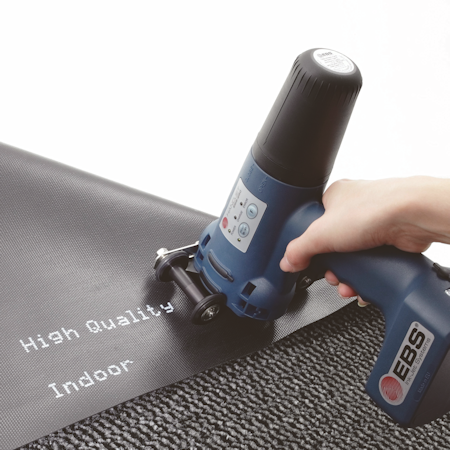

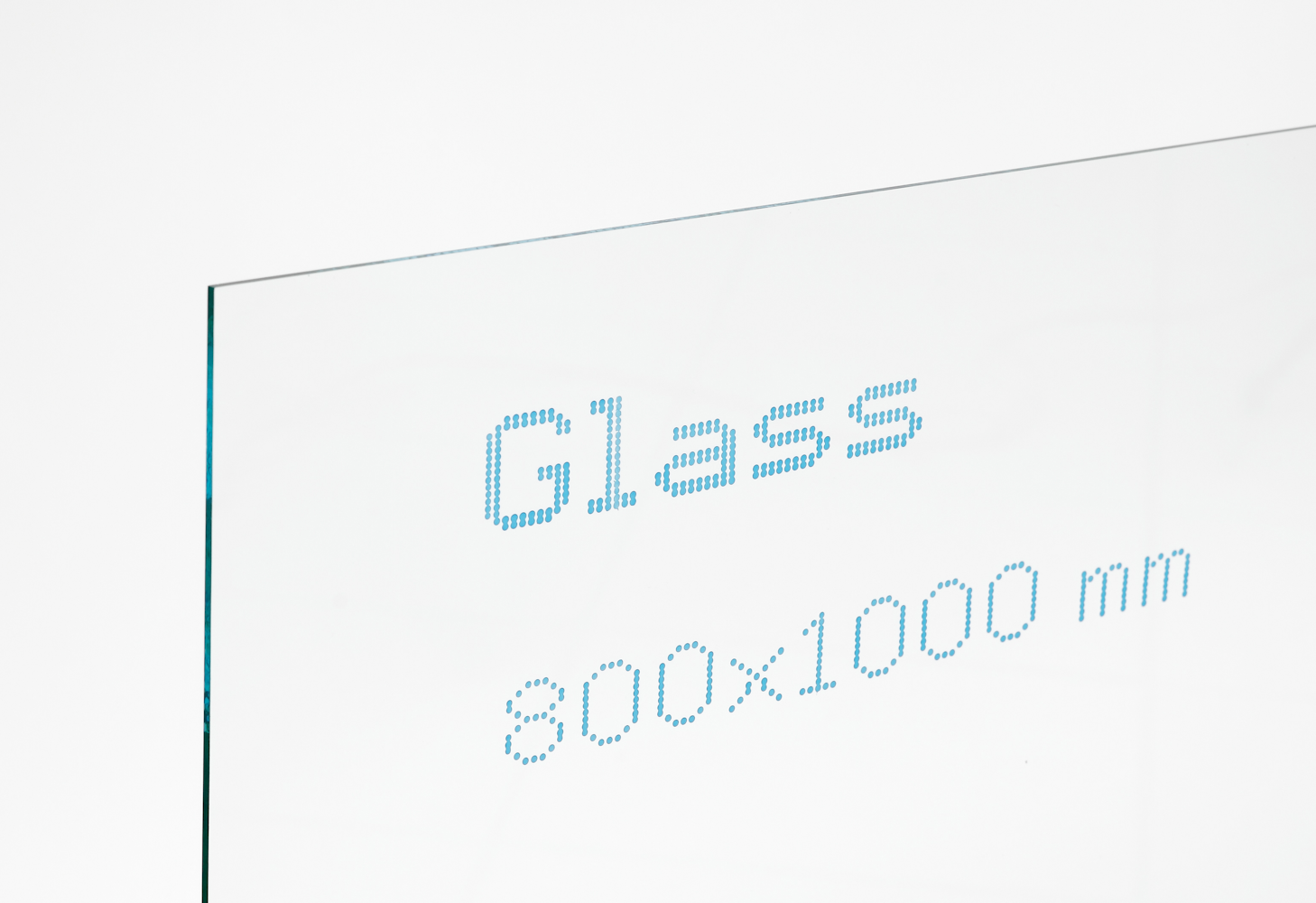

The EBS-250 Handjet® can print onto virtually any surface - porous or non-porous, pale or dark. Metal, plastic, timber, concrete, card, fabric... virtually anything can be printed with the Handjet. A choice of black, white, reflex blue, pale blue, red and yellow standard inks is available. For products stored outdoors, inks are available with strong UV and weather resistance. Red, blue and brown food-grade inks can be used for direct food contact. For security-marking, a UV-fluorescing ink is available. Inks are supplied in quick-change, 110ml cartridges with a typical consumption of 110,000 characters per cartridges based on printing 11mm high text.
